24VDC high torque low rpm dc motor with gearbox 32mm

FOB Reference Price:Get Latest Price
$3.45 - $4.05 / Pieces | 2 Piece/Pieces 24VDC high torque low rpm dc motor with gearbox 32mm (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETONM
Model Number:
ET-SGM32A 24VDC high torque low rpm dc motor with gearbox 32mm
Voltage(V):
6-24VDC
Output Power:
2w
Usage:
Home Appliance, Auto and Integent Cleaner; Vending and Banking System
Certification:
CE, ROHS, ISO9001, ISO14001
Type:
Gear Motor
Torque:
0.5-30kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
1-600rpm
Continuous Current(A):
1A
Efficiency:
75%
Color:
Silvery White
Application:
Household Appliances
Keywords:
Bi-directional Dc gear Motors
Motor type:
PMDC Brushed Motor
Size:
32mm
Gears:
Metal Gears
Product Name:
24VDC high torque low rpm dc motor with gearbox 32mm
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day 24VDC high torque low rpm dc motor with gearbox 32mm
Packaging & Delivery
Packaging Details
1.Export standerd carton/foam.
2.Customized packing condition per your requirements
Port
shenzhen and hk
Lead Time :
Shipped in 15 days after payment
Product Description

Product Application

Name: ET-SGM32-A Centre-shaft gear motor, 12v gear motor, 6v geared motor, gear motor for Towel Dispenser, paper dispenser
Model No.: SGM32-A


What Etonm motor offer? ETONM offers Mini DC motors and DC Gear motors:
DC Voltage: from 1VDC to 30VDC
Low Speed: from 0.1rpm to 1500rpm
Torque: 0.1kg.cm to 400kg.cm
Mini size: diameter from Φ6mm to Φ50mm
Low noise
Long lifetime


ROUND SPUR GEAR MOTOR
Round Spur Gear Motor: Round spur gear motor is a DC motor with a round spur gearbox. most of the gears inside the gearbox/gearhead are Spur Gear.

The Advantages:
1. Low cost

2. lots of series and types, lots of choices

3. easy to do customizations

4. widely used

5. shaft can be centred and off-centred.

Main Features

1. Shaft dimension can be customized.
2. The Voltage can be 6V, 9V, 12V, 24V; The DC Motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.
Certifications
Detailed Images

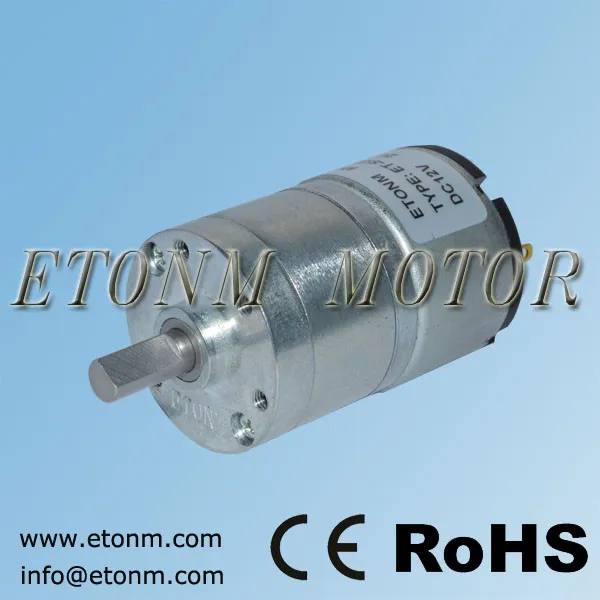

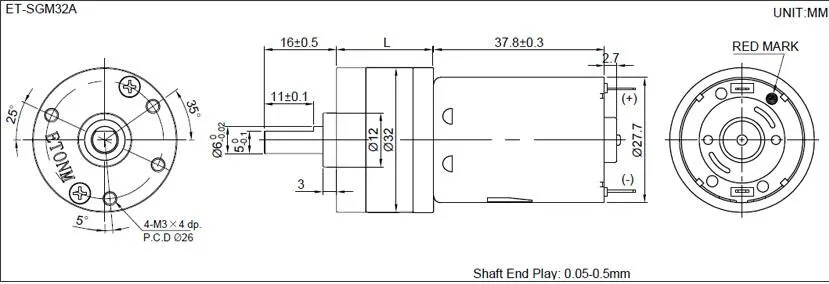

ET-SGM32A    6v 12v 32mm gear motor

Performance Range:
-Voltage: 6~24VDC
-Speed: 1~600rpm
-Torque: 0.5~30kg.cm

Typical application:
-House-hold Appliance
-Auto and Integent Cleaner
-Vending and Banking System

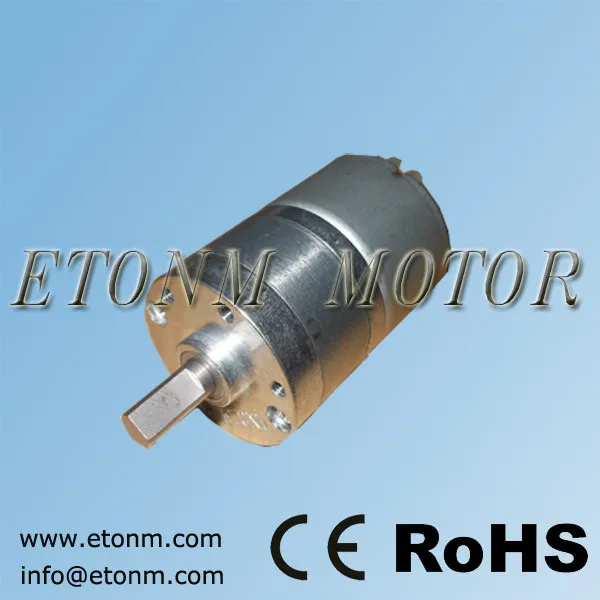

ET-SGM32B mini Dc Gear motor, dc motor geared

Performance Range:

-Voltage: 6~12VDC
-Speed: 1~600rpm
-Torque: 0.5~20kg.cm


Typical application:

-House-hold Appliance
-Auto and Integent Cleaner
-Vending and Banking System

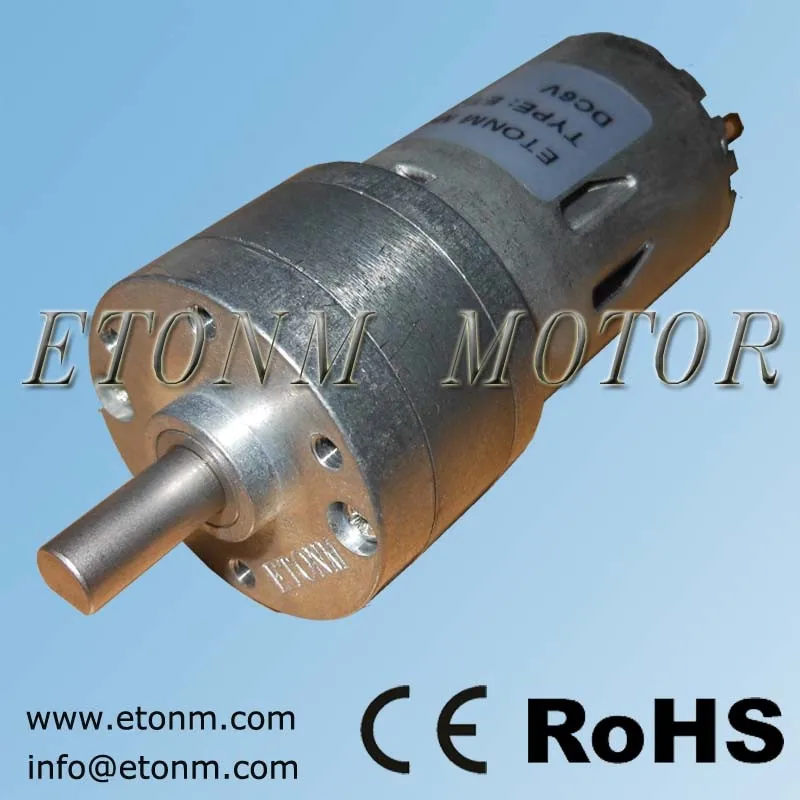

ET-SGM32C dc motor with gear, dc gear motor 12v, 6v 3v

Performance Range:

-Voltage: 6~24VDC
-Speed: 5~600rpm
-Torque: 0.5~25kg.cm


Key Features:

-Precious Carbon Brush
-Precise Metal Gears
-CW/CCW Running
-Low noise


Shaft: can be D-cut, with hole, with screw hole, with ring-lot, etc
Low cost: the biggest advantage for this type is its low cost,but high efficiency and duribility.
Low Noise: we can use different technologies to make the motor noise level meet customer requirements. Like Precise gears, plastic gears, grease and motor balance, motor brushes, etc.
Long Lifetime: if needed the motor lifetime can be increased by a certain special technologies.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to find the actual data you need

* Engineers available to service any technial problem.

*Replacement

Packing & Delivery
Packaging
Size
484(L) * 270 (W) * 275 (D)
Weight
30kg



Packaging Details
The normal package is carton and foam. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Why choose us

The reason why choose us?.

1. We can provide OEM / ODM services for all types of customers. Our technical team will provide online services to our customers.

2. We provide 100% guarantee for the product. Quality is the most important Each product must be tested for life and noise and checked by a quality inspector and a sales representative prior to shipment.

3.Production capacity

  ETONM MOTOR has Two Factories, one for DC Motor, the other for Gearbox.
  Unit now we have a production capacity of:
  DC Motor 40,000pcs/day
  Gear Motor 8,000pcs/day


  Continuously apply more and more automatic machines and equipments, we are expecting till end of 2018 have a prodution capacity of:
  DC Motor 45,000pcs/day
  Gear Motor 15,000pcs/day


4.One-stop purchase
   ETONM MOTOR offers DC Gear Motors,DC Motors,Brushless Motor, Encoders. Here you can find motors 1-24VDC, diameter 8mm to 50mm, to rque 0.1kg.cm to 500kg.cm. Beside, ODM, OEM and Cutomizations offered.


   We are a factory that offers our customers the most competitive price.
