45mm brushed motor dc 12v 30w

FOB Reference Price:Get Latest Price
$16.50 - $22.50 / Pieces | 2 Piece/Pieces 45mm brushed motor dc 12v 30w (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETONM
Model Number:
ET-PGM45 45mm brushed motor dc 12v 30w
Voltage(V):
4.5~24V
Output Power:
~30W
Usage:
Boat, Car, Electric Bicycle, Home Appliance, Sanitary Bin, Auto Dispenser, vending and bank system
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
~30kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
1-800rpm
Continuous Current(A):
30-1000mA
Efficiency:
60%
Product Name:
45mm high torque 24v dc motor with encoder
Keywords:
High Torque Gear Motor
Size:
45mm
Color:
Silver
Gears:
Metal Gears
Name:
45mm brushed motor dc 12v 30w
Application:
Household Appliances
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day 45mm brushed motor dc 12v 30w
Packaging & Delivery
Packaging Details
carton and foam
Port
shenzhen and HK
Lead Time :
7-10 working days
Product Description
Product Name
ET-PGM45 45mm brushed motor dc 12v 30w
Material
stainless steel
Voltage
12-24v
speed
0.9-1500rpm
Torque
0.5-150kg.cm
Advantage
high torque, high speed, central shaft
Certification
CE, ROHS
Application
electric lock, espreso machine,,electric valve, coffee grinder

Notes:

Planetary Gear Motor: Planetary gear motor is a DC Motor with a Planetary gearbox or gearhead. The gearbox design is a planetary design, the gears working style is like the planetary running. It has sun gear, planetary gears and Ring Gear, see this picture.Planetary gearbox design
Planetary gearbox biggsst advantages:
1. Small diameter with high torque.
2. High precision.
3. Low noise.
Planetary Gearbox disadvange: high cost.

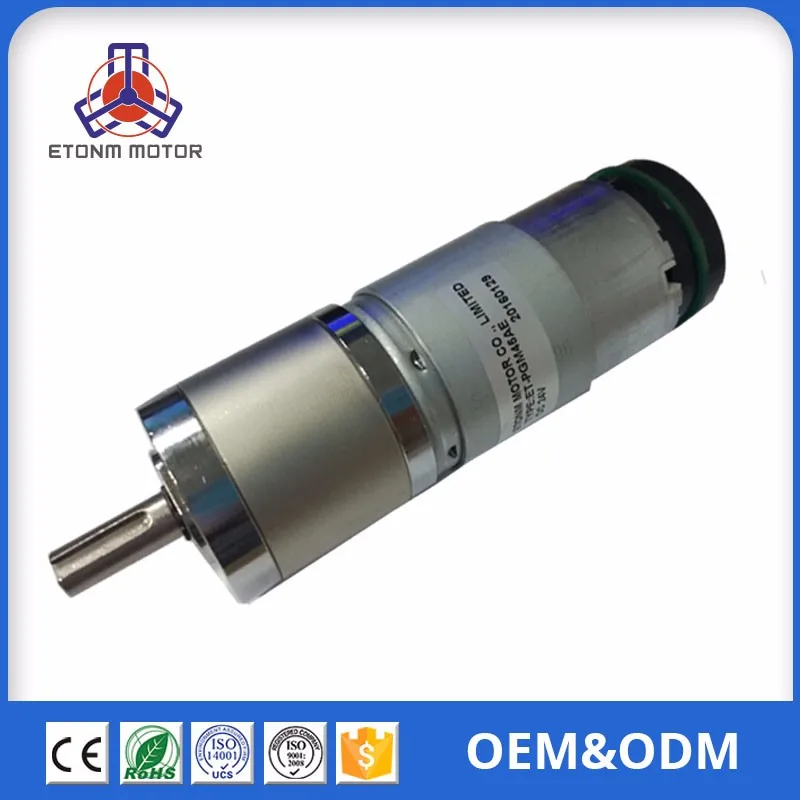

Products Show

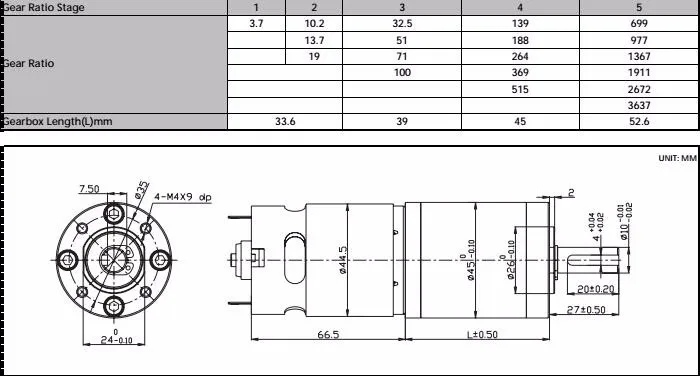

Product Parameters
Quality control
Undergoing a series of 100% on-site inspection to the rotor, stator, commutator, endplay and performance plus operator's self-checking and QC first and shift inspection
1. Rotor Resistance testing

       2. Rotor waveform Testing

          3. commutator Inspection

4. Appearance Inspection

      5. End play checking

   6. Motor performance Inspection

Our Certifications

All of our motors can meet the standard of CE and ROHS
