36mm brushless dc motor for New energy electric car

FOB Reference Price:Get Latest Price
$8.25 - $16.25 / Pieces | 2 Piece/Pieces 36mm brushless dc motor for New energy electric car (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
ETONM
Model Number:
ET-PGM36BL
Voltage(V):
12-24v
Output Power:
5W
Usage:
Home Appliance, Medical equipment; robotics
Certification:
CE, ROHS, ISO9001; ISO14001
Type:
Micro Motor, brushless motor
Torque:
0.1-60kg.cm
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Drip-proof
Speed(RPM):
1-1500rpm
Continuous Current(A):
2A
Efficiency:
75%
Product Name:
36mm brushless dc motor for New energy electric car
Size:
36mm diameter
Color:
black
Supply Ability
Supply Ability:
4000 Piece/Pieces per Day 36mm brushless dc motor for New energy electric car
Packaging & Delivery
Packaging Details
carton and foam
customized
Port
shenzhen and hongkong
Lead Time :
18-25 working days after payment
Product Description

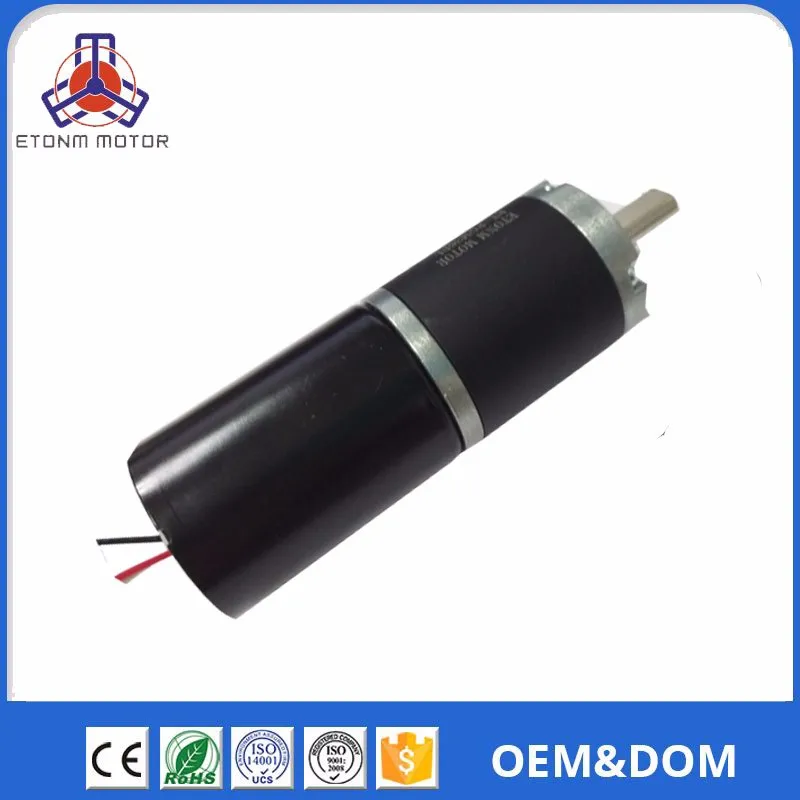

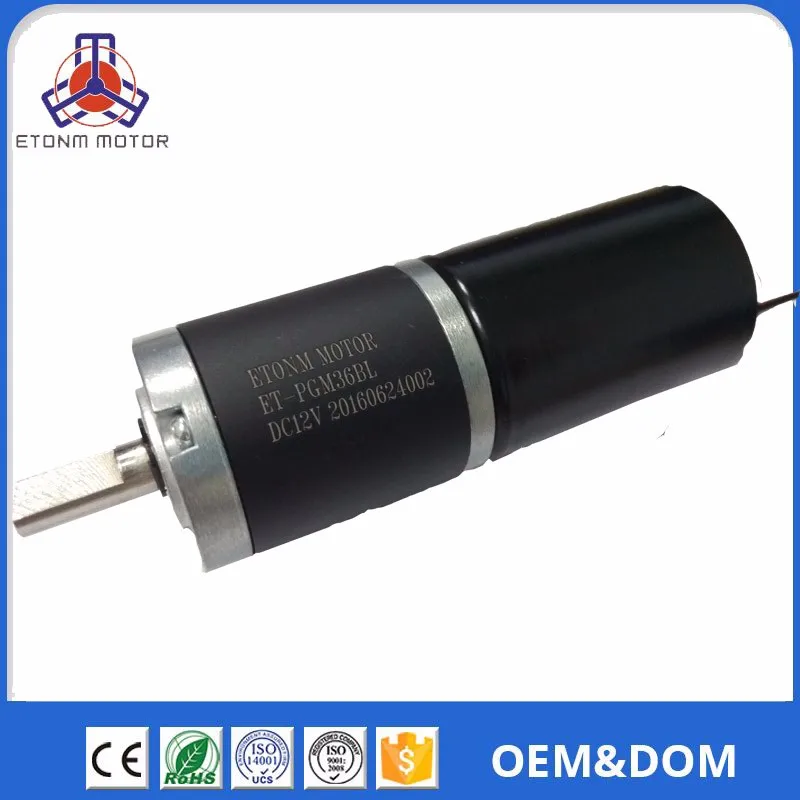

ET-PGM36BL       36mm brushless dc motor for New energy electric car

Performance Range                                                   Key Feature                                                                     Typical Application

Voltage: 12-24v                                                           Brushless Long Lifetine                                              Robotics

Speed: 1-1500rpm                                                      Easy Control                                                                     Acuator And Electricl Valve

Torque: 0.1-60kg.cm                                                  Low Noise                                                                         Medical Equipment

Detailed Images

Customized:

Shaft dimension can be custimzied.
Speed can be customzied.


Customized:

The voltage can be 12v, 24v;
The gearbox can matched with other dc motor.


Model
Voltage
No load speed(RPM)
No load current(mA)
Rated speed(RPM)
Rated current(mA)
Rated Torque(Kg.cm)
ET-PGM36-121150
12v
1150
<350
961
<1.7
2.8
ET-PGM36-12315
12v
315
<350
263
<1.7
5.5
ET-PGM36-12117
12v
117
<350
98
<1.7
13
ET-PGM36-1284
12v
84
<350
70
<1.7
18
ET-PGM36-1232
12v
32
<350
26
<1.7
44
ET-PGM36-1211.5
12v
11.5
<350
9.5
<1.7
60
ET-PGM36-124.3
12v
4.3
<350
3.6
<1.7
60
Company information

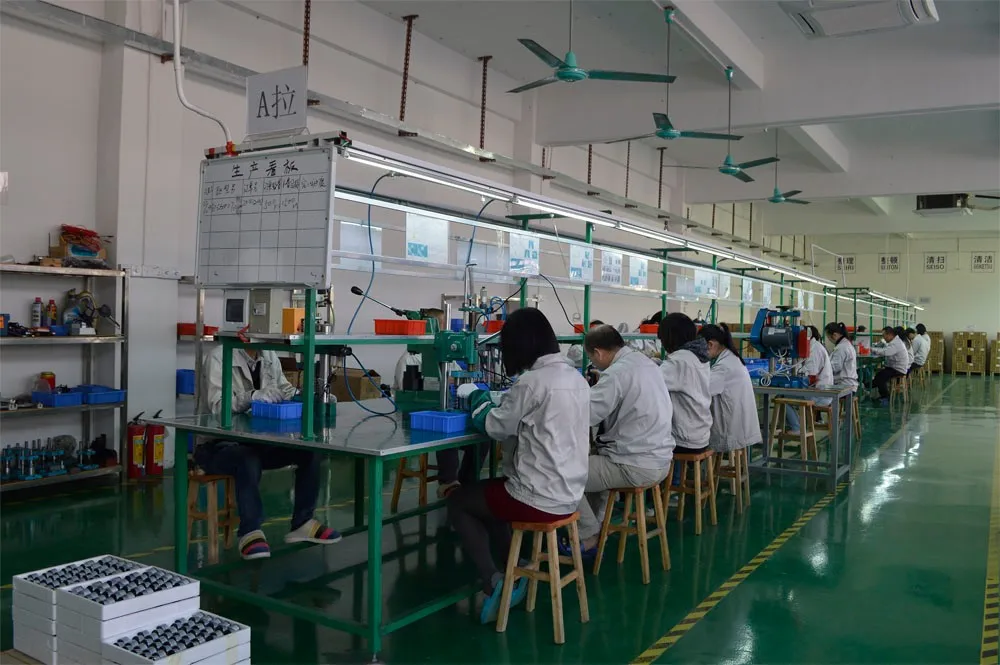

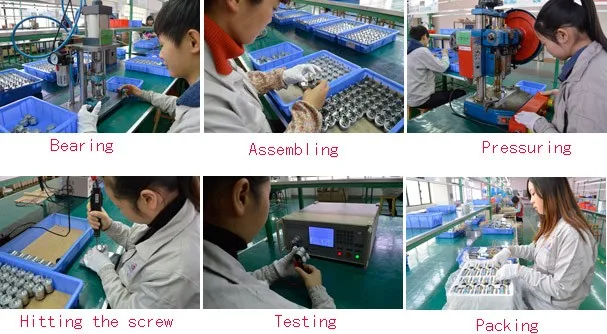

Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. Even since the beginning, Etonm have been holding “Mutual-Benefit, Truthful and Innovative” as it core value.

Company Vision

Since Science and Technology is developing day by day, more and more Automations are coming into people’s life, work and environments around, like house-hold, Office, Beauty and health care, Safe ad Security, Traffics and communications, Travel and hotels, Equipments and tools, Automotives, etc.

Etonm staff is engaged in making people’s life more and more convenient, comfortable and safe!
