9v high torque dc motor for electric drawer

FOB Reference Price:Get Latest Price
$2.98 - $4.45 / Pieces | 2 Piece/Pieces 9v high torque dc motor for electric drawer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETONM
Model Number:
ET-SGM27 9v high torque dc motor for electric drawer
Voltage(V):
1.5-24v
Output Power:
0.8w
Usage:
Home Appliance, safety and valve
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
0.2-12kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
1-800rpm
Continuous Current(A):
1.1A
Efficiency:
75%
color:
silver white
Weight:
95G
Motor type:
tube gear motor
diameter:
27mm
Structure:
spur gear motor
Gears:
Metal Spur gears or as required
Shaft:
Center Shaft
noise:
low noise
function:
Driven equipment
Product Name:
9v high torque dc motor for electric drawer
Supply Ability
Supply Ability:
4000 Piece/Pieces per Day 9v high torque dc motor for electric drawer
Packaging & Delivery
Packaging Details
1.Export standerd carton/foam.
2.Customized packing condition per your requirements
Port
shenzhen and hk
Lead Time :
3-5 days for samples; 18-25 days for production
Product Description

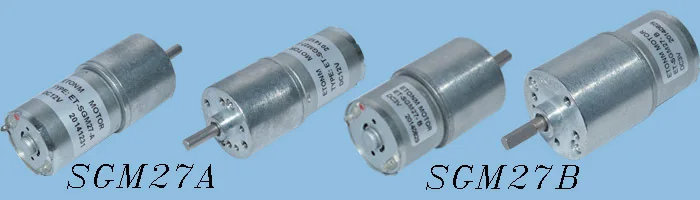

ET-SGM27=== 9v high torque dc motor for electric drawer





About Product

Gear Ratio Stage

      3

      4           5         6

       7

     8

Gear Ratio

     10

     21     43 90188392
      27     61139317720




Gearbox Length(L)                                         25

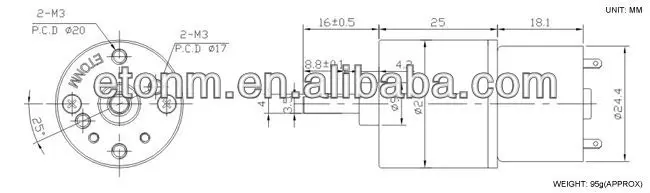

 About Drawing





 Motor Datasheet:



 MODEL
VOLTAGE
VDC
NO LOAD
AT RATED LOAD
AT STALL
Gearbox
Length
SPEED
CURRENT
SPEED
CURRENT
TORQUE
TORQUE
CURRENT
L
WORKING
NOMINAL
rpm
A
rpm
A
kg.cm
kg.cm
A
mm
ET-SGM27-0358
1.3-4.5
3.0
58
   ≤0.04
43
  ≤0.15
0.15
0.6
≤0.5
 25
ET-SGM27-0329
1.3-4.5
3.0
29
 0.04
22
 ≤0.15
0.25
1.0
≤0.5
25
ET-SGM27-0314
1.3-4.5
3.0
14
   ≤0.04
12
  ≤0.15
0.25
1.9
≤0.5
25
ET-SGM27-036.4
1.3-4.5
3.0
6.4
 0.04
4.8
 ≤0.15
1.00
4.0
≤0.5
25
ET-SGM27-035.1
1.3-4.5
3.0
5.1
   ≤0.04
3.1
   ≤0.15
1.00
2.5
≤0.5
25
ET-SGM27-0658
3.0-9.0
6.0
58
   ≤0.05
44
   ≤0.18
0.50
2.0
≤0.8
25
ET-SGM27-0628
3.0-9.0
6.0
28
0.05
21
 ≤0.18
1.00
4.0
≤0.8
2
 ET-SGM27-0614
3.0-9.0
6.0
14
    ≤0.05
10
  ≤0.18
2.00
8.0
≤0.8
25
ET-SGM27-066.5
3.0-9.0
6.0
6.5
 0.05
5.9
 ≤0.18
3.50
10.0
≤0.5
25
Note:
1. This list is just for reference, we cam make the DC motor with Different voltage(6V,12V, 24V), speed(from 1rpm-800rpm), and also different Gear Ratio, so the Gear motor’s final output voltage, speed, torque can be customerized.
2. We can match different DC motor with this gearbox.
3. Gearbox shaft dimension is adjustable.
4.Motor noise and lifetime: Motor noise can be customized by different gears and motor design; Lifetime can be customized by using different brushes and commutators design. When you have this special requirements, please let us know.
5. Additional Support:
  • cable and connector
  • gear, worm and gear tray
  • motor can be with ENCODER(ET-MY24).



Application

Electric Wine Opener, Electronic Lock, High-class Toy, Automatic Valve, Automatic Switch, Automatica Curtain Machine, Hair Curler...



About Market

These motors are mainly sold to Western Europe, America, South Afrca, Middle East...,more than 30 courtries and regions.



Packaging & Shipping

Packing:

1.Export standerd carton/foam.

2.Customized packing condition per your requirements



Shipping:

10-15 days after received your payment.  Usually we use DHL and Fedex.

We are can make it according to your requirements.







Our Services

1.Your inquiry related to our producta will be replied within 24 hours.



2.All your inquiries will be well explained by our experienced staff.



3.We can customize the motor according to your requirements.



4.We will keep the secret for all our customers.



Quality and Service Commitment



Quality Policy: No Best, just Better!     Quality Target: The output products yield reach 100%

Lead time target: On lead time reach 100%    Return: No , Returns were controlled under one time per year.

Complain: No. Complain satisfaction reach 100%





Company Information

We can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.



Production Capacity:

5000pcs gear motors per day, 10k piece dc motor per day.



Our Advantage:

1.High efficiency up to 80%-90%.

2.Low noise, long life, small volume.

3.High Reliability.

4.Customized.



Main Equipment:

Winding Machine, Dynamic Balance Machine, Spot-welder Machine, Knurling Machine, Automatically butts Welding Machine, Magnetizing Machine, Precision Lathe, Grinding Machine, Milling Machine, Lathe, Punth....

Quality Control:



Main customers:

1.Siemens                        2.Sepura                       3.Jaccuzi                        4.MAUER Locking                          5. CES Locking         6.Hanna                            7.Hardi                           8.TRIMARK Automatic                             9.Hanna Instruments
