High torque spur gear dc motor reduction with flat gearbox 12NM 100rpm for packing barrier

FOB Reference Price:Get Latest Price
$9.15 - $17.56 / Pieces | 2000 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETONM
Model Number:
ET-CGM95-A
Voltage(V):
12-24V
Output Power:
~40w
Usage:
Boat, Car, Home Appliance, bank and vending system, security and hygine products
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
1-80kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
1-170rpm
Continuous Current(A):
~320A
Efficiency:
60%
Product Name:
ET-CGM95-A
shaft diameter:
8mm
Rated Voltage:
12V-24V
Gear Material:
metal gear/plastic gear
Motor type:
DC brushed motor
shaft shape:
D-shaft
key features:
CW/CCW Running
weight:
700g
Shaft End play:
0.05-0.5mm

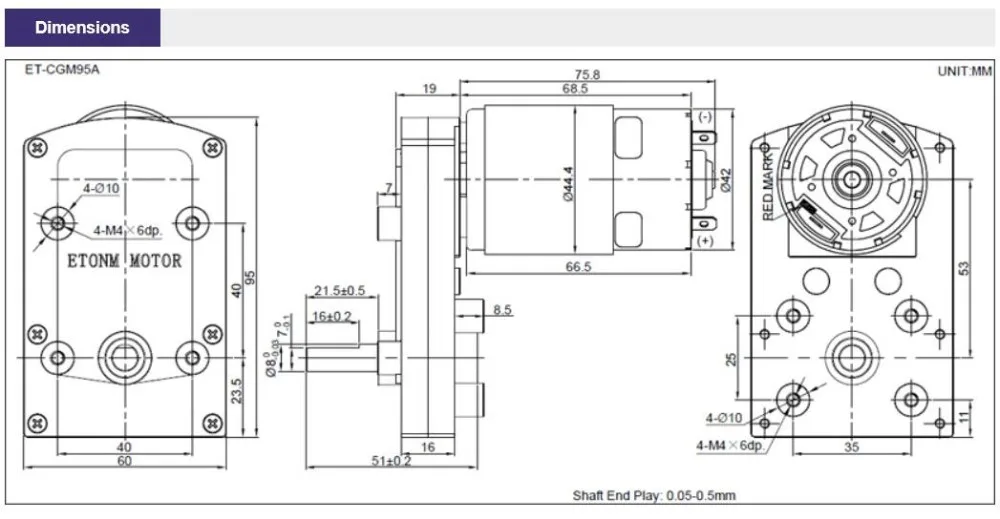

gearbox size:
95mm*60mm
Supply Ability
Supply Ability:
6000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packing Details : plastic film bags, foam, carton packing.
Port
shenzhen or HK
Lead Time :
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 60 To be negotiated
Product Description
Product Name
  ET-CGM95-A flat spur dc geared motor
Material
stainless steel
Voltage
6-24v
speed
1-200rpm
Torque
3-400kg.cm
Advantage
small dimension,low noise, low price
Certification
CE, ROHS
Application
electric lock, Automatic dustbin,electric valve

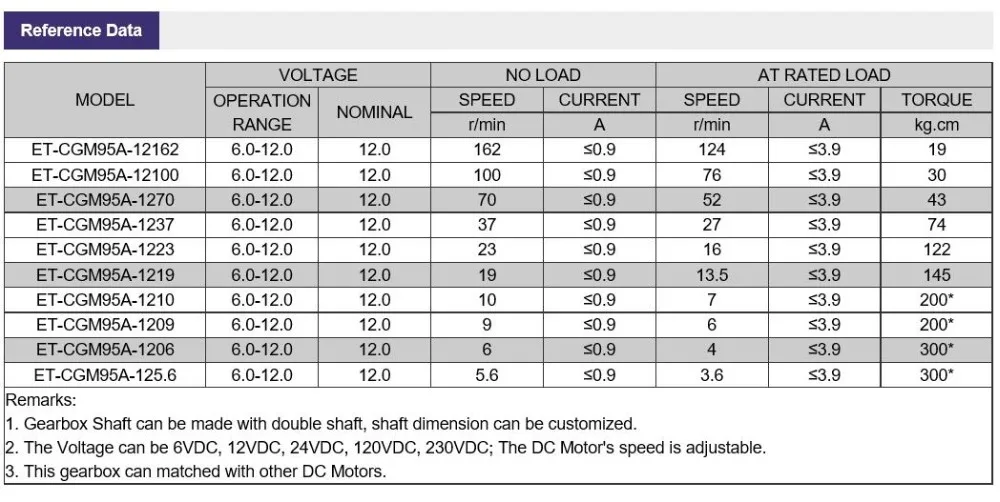

Product Parameters
Products Show

Item Name:  ET-CGM95A 12V Spur Motor With Flat Gearbox

Model Number:  ET-CGM95A

More Products

ET-PGM36

Planetary gearbox motor

ET-SGM51-B

Round gear motor

ET-WGM58A

Worm Gearbox Motor

ET-CGM95C

Flat gearbox motor

ET-SGM12C

Spur gear motor

ET-SGM37A

Spur gear box motor

Our Company

         Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. With 13 years experience, we have the perfect team, excellent engineers and modernized production line.

          There are 5 series gear motor and 1 series encoder, over 100 types. They are Round Spur Gear Motor, Right Angle Gear Motor, Planetary Gear MotorFlat Spur Gear Motor, Micro DC Motor and Magnet Encoder. In each series motor, we all have our own strong type.

         ET-WGM58A is very popular used on CNC machine. ET-CGM95C, ET-SGM27A, ET-WGM58C are popular for valve. ET-SGM51B is our another strong product. ET-PGM36, ET-PGM32, ET-PGM28A and ET-PGM28B have a excellent performent, because they are planetary gear motor.

         For round spur gear motor, ET-SGM12C is used on various industry this year. ET-SGM25A, ET-SGM37A, ET-SGM37D2, ET-SGM37E and ET-SGM37F, because their low price and good performance, many clients buy these type motors. ET-CGM95-A has big torque and high rpm, so lots of customers choose this type motor.

         These motors are used on various industries. Home Appliance, Office Equipments, Vending Machine and Bank Equipment, Robotics and Electric Valve, Safe and Security, Sanitary Dispenser. 80% gear motors are exported.


                Porduction Workshop

                 Production Process



Quality control
Certifications
Packing & Shipping

Packing Details  : plastic film bags, foam, carton packing.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging
2. Outer Packing 1
3.  Outer Packing 2
Service

1: Are you trading company or manufacturer ?

A: We are factory, which has 13 years experience.

2: How long is your delivery time?

A: Generally it is 7-20 working days if the goods are in stock. or it is 15-45 working days if the goods are not in stock, it is according to quantity.

3: What is your terms of payment ?

A:  We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

4: Which shipping way is available?

A: DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
