2.4rpm to 122rpm high torque brushless motor brushless geared motor 24v brushless dc motor

FOB Reference Price:Get Latest Price
$6.23 - $13.50 / Pieces | 2000 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 60 Negotiable
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETONM
Model Number:
ET-WGM58BL
Voltage(V):
12-24VDC
Output Power:
12W
Usage:
Boat, Car, Electric Bicycle, Home Appliance, robotics
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
1-80kgf.cm, 1-80kgf.cm, adjustable
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Totally Enclosed
Speed(RPM):
1-100rpm
Continuous Current(A):
0.20~0.50
Efficiency:
75%
Product Name:
Brushless DC worm gear motor ET-WGM58BL
Shaft diameter:
8mm or Customized
connnector wire:
UL1007 24AWG
Feature:
Low noise vertical shaft for assembly way
Hole:
4-M4 dp7
Motor type:
Dc Brushed Gear Motor
Rated Voltage:
6V - 24V
Speed:
1-100rpm
Gear Material:
plastic, metal
Supply Ability
Supply Ability:
180000 Piece/Pieces per Month 12V electric motor with gear reduction
Packaging & Delivery
Packaging Details
Packing Details : plastic film bags, foam, carton packing, 30pcs/carton.
Port
shenzhen and HK
Lead Time :
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 60 To be negotiated
Product Description

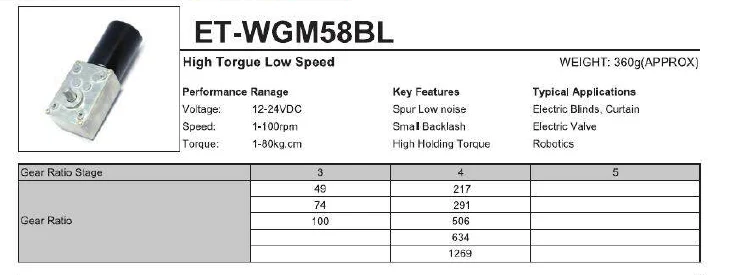

BLDC Right Angle Gear Motor
Model
ET-WGM58BL
Motor Voltage(VDC)
12v-24v
Gearbox ratio
49, 74, 100, 217, 291, 506, 634, 1269 or Custom
Gearmotor no load speed(rpm)
1-122rpm
Gearmotor rated load speed(rpm)
1.7-106rpm
Gearmotor rated load torque(kgf.cm)
1-80kgf.cm
Gearmotor rated current(A)
<0.85A or <0.65A or <1.50
Gearmotor no load current(A)
<0.25A or <0.40A
Housing material
Stainless Steel
Bearing at output shaft
ball bearing or  oil-retaining bearing
Certificate
CE,ROHS,ISO
Shaft Shape
D-shaft or O-shaft
Encoder
3PPR, 7PPR, 12PPR
Gear type
Straight gearwheel, or planet construction

 Notice: The above specification is just for reference. The gear motor's gear, shaft, speed, ratio, torque                       and motor type can be customized.

                If you can't find the right motor or feel confused, please contact me. Our engineers will help                           you and evaluate the suitable motor for you.



Products Show

Item Name: BLDC Right Angle Gear Motor

Model Number:  ET-WGM58BL

More Products

ET-PGM36

Planetary gearbox motor

ET-SGM51-B

Round gear motor

ET-WGM58A

Worm Gearbox Motor

ET-CGM95C

Flat gearbox motor

ET-SGM12C

Spur gear motor

ET-SGM37A

Spur gear box motor

Our Company

         Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. With 13 years experience, we have the perfect team, excellent engineers and modernized production line.

          There are 5 series gear motor and 1 series encoder, over 100 types. They are Round Spur Gear Motor, Right Angle Gear Motor, Planetary Gear MotorFlat Spur Gear Motor, Micro DC Motor and Magnet Encoder. In each series motor, we all have our own strong type.

         ET-WGM58A is very popular used on CNC machine. ET-CGM95C, ET-SGM27A, ET-WGM58C are popular for valve. ET-SGM51B is our another strong product. ET-PGM36, ET-PGM32, ET-PGM28A and ET-PGM28B have a excellent performent, because they are planetary gear motor.

         For round spur gear motor, ET-SGM12C is used on various industry this year. ET-SGM25A, ET-SGM37A, ET-SGM37D2, ET-SGM37E and ET-SGM37F, because their low price and good performance, many clients buy these type motors. ET-CGM95-A has big torque and high rpm, so lots of customers choose this type motor.

         These motors are used on various industries. Home Appliance, Office Equipments, Vending Machine and Bank Equipment, Robotics and Electric Valve, Safe and Security, Sanitary Dispenser. 80% gear motors are exported.


                Porduction Workshop

                 Production Process



Quality control
Certifications
Packing & Shipping

Packing Details  : plastic film bags, foam, carton packing.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging
2. Outer Packing 1
3.  Outer Packing 2
