12v 24v high torque geared motor 3v gear motor low rpm 6v dc motor

FOB Reference Price:Get Latest Price
$8.98 - $9.50 / Pieces | 5000 Piece/Pieces (Min. Order)
Voltage(V):
3-12V
Output Power:
\
Lead Time:
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 60 Negotiable
Customization:
SHAFT (Min. Order: 5000 Pieces)
Samples - $15.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETONM
Model Number:
ET-CGM64
Usage:
Home Appliance, smart blinds motor
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
1~25kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
0.5-15rpm
Continuous Current(A):
≤0.11A
Efficiency:
75%
Product Name:
ET-CGM64 Small Flat Spur Gear motor
shaft shape:
D-shape or O-shape
shaft dia:
6mm
no load speed:
0.5-195rpm
rated speed:
0.5-156rpm
rated torque:
0.2-25kgf.cm, customized
Gear Material:
metal gear
weight:
160g
DC motor size:
33mm*22.7mm
gearbox size:
64.4mm*38mm
Supply Ability
Supply Ability:
180000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
plastic film bags, foam, carton packing.
Port
shenzhen and HK
Lead Time :
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 60 To be negotiated

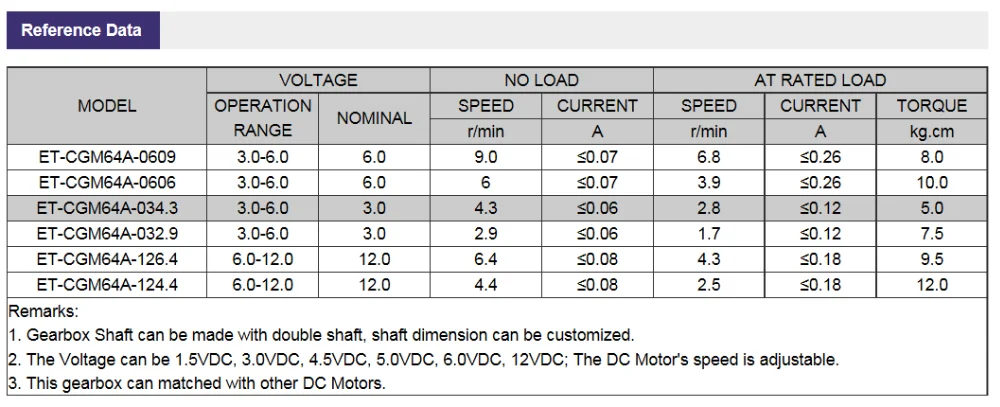

Product Descriptions
                                                          ET-CGM64 flat spur dc geared motor
Model
ET-CGM64
Motor Voltage(VDC)
12v-24v
Gearbox ratio
30.7, 105.5, 234, 292, 534.5, 662.5, 828  or Custom
Gearmotor no load speed(rpm)
0.5rpm - 190rpm, or Custom
Gearmotor rated load speed(rpm)
0.5-156rpm or Custom
Gearmotor rated load torque(kgf.cm)
1-25kgf.cm
Gearmotor rated current(A)
<0.25A
Gearmotor no load current(A)
<0.08A
Housing material
Stainless Steel
Bearing at output shaft
ball-bearing or  oil-retaining bearing
Certificate
CE,ROHS,ISO
Shaft Shape
D-shaft or O-shape
Encoder
3PPR, 7PPR, 12PPR
Gear type
Straight gear, or worm gear, or planet construction

 Notice: The above specification is just for reference. The gear motor's gear, shaft, speed, ratio, torque                       and motor type can be customized.

                If you can't find the right motor or feel confused, please contact me. Our engineers will help                           you and evaluate the suitable motor for you.



Products Show

Item Name:   High Torque DC motor With Flat Gearbox

Model Number:  ET-CGM64

More Products

ET-PGM36

Planetary gearbox motor

ET-SGM51-B

Round gear motor

ET-WGM58A

Worm Gearbox Motor

ET-CGM95C

Flat gearbox motor

ET-SGM12C

Spur gear motor

ET-SGM37A

Spur gear box motor

Our Company

         Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. With 13 years experience, we have the perfect team, excellent engineers and modernized production line.

          There are 5 series gear motor and 1 series encoder, over 100 types. They are Round Spur Gear Motor, Right Angle Gear Motor, Planetary Gear MotorFlat Spur Gear Motor, Micro DC Motor and Magnet Encoder. In each series motor, we all have our own strong type.

         ET-WGM58A is very popular used on CNC machine. ET-CGM95C, ET-SGM27A, ET-WGM58C are popular for valve. ET-SGM51B is our another strong product. ET-PGM36, ET-PGM32, ET-PGM28A and ET-PGM28B have a excellent performent, because they are planetary gear motor.

         For round spur gear motor, ET-SGM12C is used on various industry this year. ET-SGM25A, ET-SGM37A, ET-SGM37D2, ET-SGM37E and ET-SGM37F, because their low price and good performance, many clients buy these type motors. ET-CGM95-A has big torque and high rpm, so lots of customers choose this type motor.

         These motors are used on various industries. Home Appliance, Office Equipments, Vending Machine and Bank Equipment, Robotics and Electric Valve, Safe and Security, Sanitary Dispenser. 80% gear motors are exported.


                Porduction Workshop

                 Production Process



Quality control
Certifications
Packing & Shipping

Packing Details  : plastic film bags, foam, carton packing.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging
2. Outer Packing 1
3.  Outer Packing 2
Service

1: Are you trading company or manufacturer ?

A: We are factory, which has 13 years experience.

2: How long is your delivery time?

A: Generally it is 7-20 working days if the goods are in stock. or it is 15-45 working days if the goods are not in stock, it is according to quantity.

3: What is your terms of payment ?

A:  We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

4: Which shipping way is available?

A: DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
