Low Noise Brushless DC Micro Motor 24V 70w

  • 2000 - 5999 Pieces
    $18.50
  • >=6000 Pieces
    $14.50
Voltage(V):
12-24v
Output Power:
70w
Lead Time:
Quantity(Pieces) 1 - 2000 2001 - 6000 >6000
Est. Time(days) 35 45 Negotiable
Customization:
Customized logo (Min. Order: 3000 Pieces)
Customized packaging (Min. Order: 3000 Pieces)

More

Graphic customization (Min. Order: 3000 Pieces)
shaft (Min. Order: 3000 Pieces)
performance (Min. Order: 3000 Pieces) Less
Samples - $25.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ETONM
Model Number:
ET-GM95BLA
Usage:
Home Appliance, banking and vending system; electric valve and robotics
Certification:
CE, ROHS, iso9001;iso14001
Type:
Gear Motor
Torque:
1-120kg.cm
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Drip-proof
Speed(RPM):
1-160rpm
Continuous Current(A):
4,0A
Efficiency:
IE 1
Product Name:
Low Noise Brushless DC Micro Motor 24V 70w
Power:
70w
Gears:
Precise Metal Gears
Weight:
500g
Color:
Silver White
Supply Ability
Supply Ability:
8000 Piece/Pieces per Day Low Noise Brushless DC Micro Motor 24V 70w
Packaging & Delivery
Port
shenzhen and hk
Lead Time :
Quantity(Pieces) 1 - 2000 2001 - 6000 >6000
Est. Time(days) 35 45 To be negotiated
Video Description
Product Description

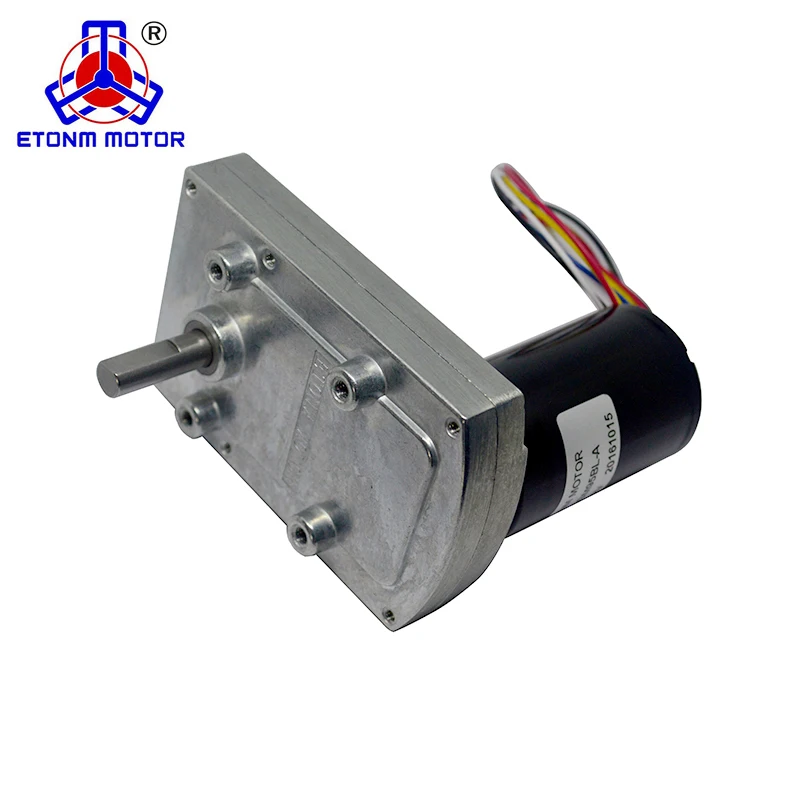

Flat Spur Gear Motor: Flat spur gear motor is a DC motor with a Flat spur gearbox. This design isFlat Gearbox design used to increase gear ratio and also save space for the customer applications.

Flat Gearbox biggest advantages:
1. Low speed: range 0.1~160rpm(most are under 50rpm)
2. High torque: up to 900kg.cm
3. the flat shape is easy to mount for some applications.
Flat Gearbox biggest disadvange: Comparatively higher noise than other types.

Model Type
ET-CGM95BLA  Low Noise Brushless DC Micro Motor 24V 70w
Voltage
12-24v
Speed
1-160rpm
Torque
1-120kg.cm
Key Features
HIgh torques small size; large speed range; CW/CCW running
Applications
home appliance; banking and vending machine; robotics
Packing & Shipping

Packing Details  : plastic film bags, foam, carton packing, 30pcs/carton.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging
2. Outer Packing
3. The Mass products loading
Our Good Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to find the detail data

* Engineers available to any problem

* Replacement

Our Certifications

All of our motors can meet the standard of CE and ROHS

Why choose us

The reason why choose us?.

1. We can provide OEM / ODM services for all types of customers. Our technical team will provide online services to our customers.

2. We provide 100% guarantee for the product. Quality is the most important Each product must be tested for life and noise and checked by a quality inspector and a sales representative prior to shipment.

3.Production capacity

  ETONM MOTOR has Two Factories, one for DC Motor, the other for Gearbox.
  Unit now we have a production capacity of:
  DC Motor 40,000pcs/day
  Gear Motor 8,000pcs/day


  Continuously apply more and more automatic machines and equipments, we are expecting till end of 2018 have a prodution capacity of:
  DC Motor 45,000pcs/day
  Gear Motor 15,000pcs/day


4.One-stop purchase
   ETONM MOTOR offers DC Gear Motors,DC Motors,Brushless Motor, Encoders. Here you can find motors 1-24VDC, diameter 8mm to 50mm, to rque 0.1kg.cm to 500kg.cm. Beside, ODM, OEM and Cutomizations offered.


   We are a factory that offers our customers the most competitive price.
