4rpm 124rpm Flat Low Speed Motor Motor With Gearbox 24v Dc Motor 5nm

FOB Reference Price:Get Latest Price
$9.15 - $17.56 / Pieces | 2000 Piece/Pieces (Min. Order)
Voltage(V):
12-24V
Output Power:
4w
Lead Time:
Quantity(Pieces) 1 - 20000 >20000
Est. Time(days) 45 Negotiable
Samples - $25.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETONM
Model Number:
ET-CGM95-A
Usage:
Home Appliance, Smart Home
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
1-80kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
1-170rpm
Continuous Current(A):
3.9A
Efficiency:
45%
Product Name:
ET-CGM95-A
shaft diameter:
8mm
Rated Voltage:
12V-24V
Gear Material:
metal gear/plastic gear
Motor type:
DC brushed motor
shaft shape:
D-shaft
gearbox size:
95*60*16mm
weight:
700g
Shaft End play:
0.05-0.5mm
rated torque:
1-120kgf.cm
Supply Ability
Supply Ability:
6000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packing Details : plastic film bags, foam, carton packing.
Port
shenzhen or HK
Lead Time :
Quantity(Pieces) 1 - 20000 >20000
Est. Time(days) 45 To be negotiated
Product Descriptions

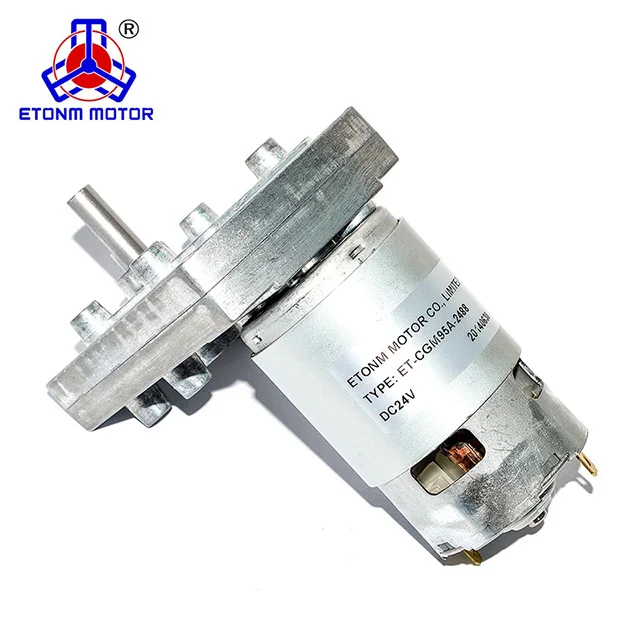

                                                          ET-CGM95-A flat spur dc geared motor
Model
ET-CGM95A
Motor Voltage(VDC)
12v-24v
Gearbox ratio
37, 60, 86, 162, 265, 315, 594, 651, 973, 1059 or Custom
Gearmotor no load speed(rpm)
1rpm - 170rpm, or Custom
Gearmotor rated load speed(rpm)
1-124rpm or Custom
Gearmotor rated load torque(kgf.cm)
1-120kgf.cm
Gearmotor rated current(A)
<0.9A
Gearmotor no load current(A)
<3.9A
Housing material
Stainless Steel
Bearing at output shaft
ball-bearing or  oil-retaining bearing
Certificate
CE,ROHS,ISO
Shaft Shape
D-shaft or O-shape
Encoder
3PPR, 7PPR, 12PPR
Gear type
Straight gear, or worm gear, or planet construction


MODEL
VOLTAGE
NO LOAD
AT RATED LOAD

operation range

nominal
speed
current
speed
current
torque
r/min
A
r/min
A
kgf.cm
 ET-WGM95A-12162
10.0-14.0
12VDC
162
< =0.9
124
<=3.9
19
 ET-WGM95A-12100
 10.0-14.0
12VDC
100
 < =0.9
76
 <=3.9
30
 ET-WGM95A-1270
 10.0-14.0
12VDC
70
 < =0.9
52
 <=3.9
43
 ET-WGM95A-1237
 10.0-14.0
12VDC
37
 < =0.9
27
 <=3.9
74
 ET-WGM95A-1223
 10.0-14.0
12VDC
23
 < =0.9
16
 <=3.9
120
 ET-WGM95A-1219
 10.0-14.0
12VDC
19
 < =0.9
13.5
 <=3.9
 120
 ET-WGM95A-1210
 10.0-14.0
12VDC
10
 < =0.9
7
 <=3.9
 120
 ET-WGM95A-1209
 10.0-14.0
12VDC
9
 < =0.9
6
 <=3.9
120
 ET-WGM95A-1206
 10.0-14.0
12VDC
6
 < =0.9
4
 <=3.9
 120
 ET-WGM95A-125.6
 10.0-14.0
12VDC
5.6
 < =0.9
3.6
 <=3.9
 120
Products Show

Item Name:   High Torque DC motor With Flat Gearbox

Model Number:  ET-CGM95-A

Our Company

         Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. With 13 years experience, we have the perfect team, excellent engineers and modernized production line.

          There are 5 series gear motor and 1 series encoder, over 100 types. They are Round Spur Gear Motor, Right Angle Gear Motor, Planetary Gear MotorFlat Spur Gear Motor, Micro DC Motor and Magnet Encoder. In each series motor, we all have our own strong type.



                Porduction Workshop

                 Production Process




Certifications
Packing & Shipping

Packing Details  : plastic film bags, foam, carton packing.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging
2. Outer Packing 1
3.  Outer Packing 2
