12V 300RPM Micro Gear DC Motor For Electric Curtain

  • 2000 - 5999 Pieces
    $10.50
  • >=6000 Pieces
    $7.90
Voltage(V):
3-12v
Output Power:
5w
Lead Time:
Quantity(Pieces) 1 - 2000 2001 - 6000 >6000
Est. Time(days) 35 45 Negotiable
Customization:
Customized logo (Min. Order: 2000 Pieces)
Customized packaging (Min. Order: 2000 Pieces)

More

Graphic customization (Min. Order: 2000 Pieces)
performance (Min. Order: 2000 Pieces)
shaft (Min. Order: 2000 Pieces) Less
Samples - $18.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETONM
Model Number:
ET_PGM22B
Usage:
Home Appliance, electric curtain; safe and locking; office automation
Certification:
CE, ROHS, ISO9001; ISO14001
Type:
Gear Motor
Torque:
0.1-6kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
1-2000rpm
Continuous Current(A):
1.5A
Efficiency:
IE 1
Product Name:
12V 300RPM Micro Gear DC Motor For Electric Curtain
Color:
Silver White
Power:
5w
Gears:
Precise Metal Gears
Diameter:
22mm
Noise:
60db
Supply Ability
Supply Ability:
8000 Piece/Pieces per Day 12V 300RPM Micro Gear DC Motor For Electric Curtain
Packaging & Delivery
Port
shenzhen and hk
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 2000 2001 - 6000 >6000
Est. Time(days) 35 45 To be negotiated
Video Description
Product Description

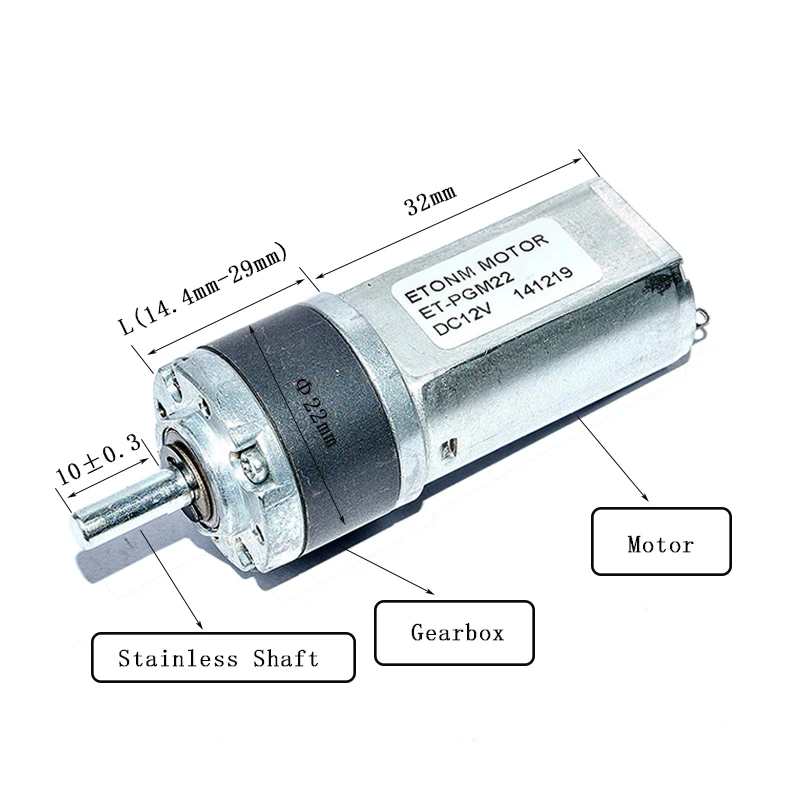

Planetary Gear Motor: Planetary gear motor is a DC Motor with a Planetary gearbox or gearhead. The gearbox design is a planetary design, the gears working style is like the planetary running. It has sun gear, planetary gears and Ring Gear, see this picture.Planetary gearbox design

Planetary gearbox biggsst advantages:
1. Small diameter with high torque.
2. High precision.
3. Low noise.

Model Name
ET-PGM22B  12V 300RPM Micro Gear DC Motor For Electric Curtain
Voltage
3-12v
Speed
1-2000rpm
Torque
0.1-6kg.cm
Key features
HIgh torque small size; large speed range Running
Applications
Apparatus and equipment; actuator and electrci valve; robotics
Packing & Shipping

Packing Details  : plastic film bags, foam, carton packing, 30pcs/carton.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging
2. Outer Packing
3. The Mass products loading
Our Certifications

All of our motors can meet the standard of CE and ROHS

Our Good Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to find the detail data

* Engineers available to any problem

* Replacement

Customer Review
Partner
Why choose us

The reason why choose us?.

1. We can provide OEM / ODM services for all types of customers. Our technical team will provide online services to our customers.

2. We provide 100% guarantee for the product. Quality is the most important Each product must be tested for life and noise and checked by a quality inspector and a sales representative prior to shipment.

3.Production capacity

  ETONM MOTOR has Two Factories, one for DC Motor, the other for Gearbox.
  Unit now we have a production capacity of:
  DC Motor 40,000pcs/day
  Gear Motor 8,000pcs/day


  Continuously apply more and more automatic machines and equipments, we are expecting till end of 2018 have a prodution capacity of:
  DC Motor 45,000pcs/day
  Gear Motor 15,000pcs/day


4.One-stop purchase
   ETONM MOTOR offers DC Gear Motors,DC Motors,Brushless Motor, Encoders. Here you can find motors 1-24VDC, diameter 8mm to 50mm, to rque 0.1kg.cm to 500kg.cm. Beside, ODM, OEM and Cutomizations offered.


   We are a factory that offers our customers the most competitive price.
