ET-SGM30A dc gear motor low rpm 12v dc gearmotor dc gear motor

FOB Reference Price:Get Latest Price
$3.50 - $6.50 / Piece | 2000 Piece/Pieces (Min. Order)
Voltage(V):
12-24V
Output Power:
\
Lead Time:
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 57 Negotiable
Samples:
$4.69 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ET
Model Number:
ET-SGM30-A
Usage:
Fan, Home Appliance, bank and vending system, security and hygine products
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
0.5~10kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
10-600rpm
Continuous Current(A):
≤0.55A
Efficiency:
60%
weight:
150g
life time:
300hours in continous using
rotation direction:
CW/CCW running
speed:
adjustable, customized
torque:
adjustable, customized
noise:
low noise
Application:
intelligent cleaner
Keywords:
high torque small size
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
carton and foam
Port
shenzhen and HK
Lead Time :
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 57 To be negotiated
Product Description
Product Name
600rpm 10kg.cm 24v geared dc motor with good performance
aterial
stainless steel
Voltage
12-24v
speed
10-600rpm
Torque
0.5-10kg.cm
Advantage
small dimension,low noise, low price
Certification
CE, ROHS
Application
intelligent cleaner, automotive door opener
Product Parameters
Performance Ranage
Key Features
Typical Applications
Voltage:   12-24VDC
Carbon Brush
Intelligent Clearner
Speed:   10-600rpm
CW/CCW Running
Banking and Vending Automation
Torque:   0.5-10kg.cm
Low Noise
Automotive Door Opener

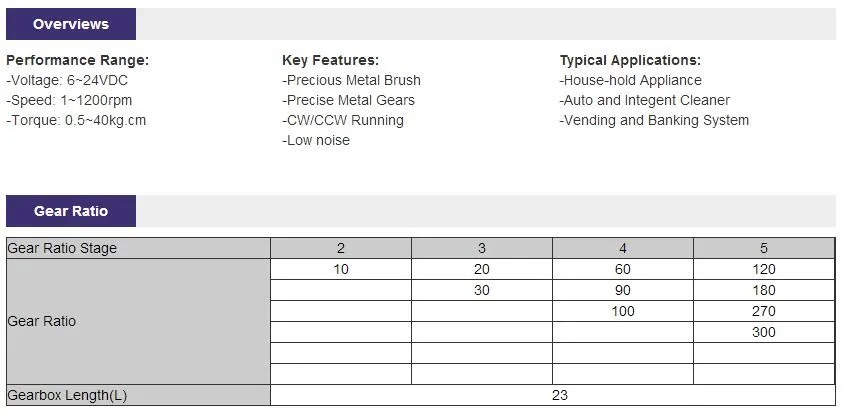

Gear Ratio Stage
2
3
4
5



Gear Ratio
10
20
60
120

30
90
180


100
270



300
Gearbox Length (L)
23

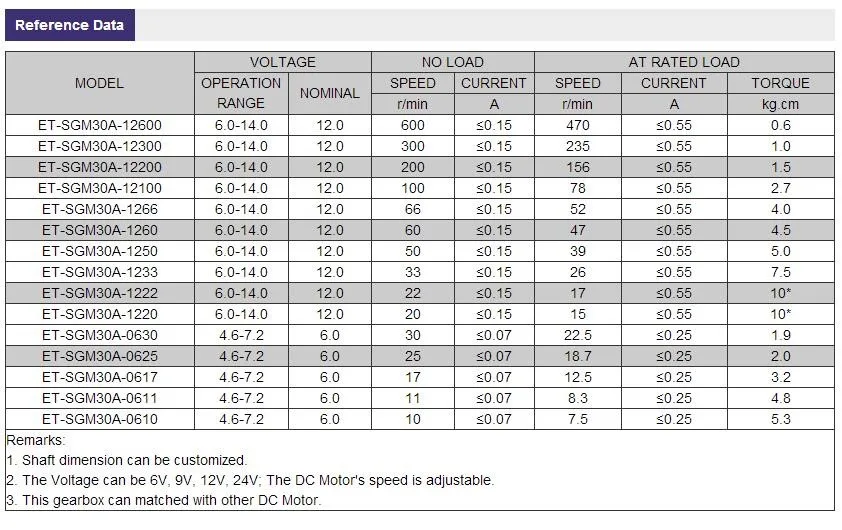

MODEL
VOLTAGE
NO LOAD
AT RATED LOAD
OPERATION
RANGE

NOMINAL
SPEED
CURRENT
SPEED
CURRENT
TORQUE
r/min
A
r/min
A
kg.cm
ET-SGM30A-12600
6.0-14.0
12VDC
600
≤0.15
470
≤0.55
0.6
ET-SGM30A-12300
6.0-14.0
12VDC
300
≤0.15
235
≤0.55
1.0
ET-SGM30A-12200
6.0-14.0
12VDC
200
≤0.15
156
≤0.55
1.5
ET-SGM30A-12100
6.0-14.0
12VDC
100
≤0.15
78
≤0.55
2.7
ET-SGM30A-1266
6.0-14.0
12VDC
66
≤0.15
52
≤0.55
4.0
ET-SGM30A-1260
6.0-14.0
12VDC
60
≤0.15
47
≤0.55
4.5
ET-SGM30A-1250
6.0-14.0
12VDC
50
≤0.15
39
≤0.55
5.0
ET-SGM30A-1233
6.0-14.0
12VDC
33
≤0.15
26
≤0.55
7.5
ET-SGM30A-1222
6.0-14.0
12VDC
22
≤0.15
17
≤0.55
10*
ET-SGM30A-1220
6.0-14.0
12VDC
20
≤0.15
15
≤0.55
10*
Remarks::
1. Shaft dimension can be customized.
2. The Voltage can be 6V, 9V, 12V, 24V; The DC Motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.
