12V 4rpm - 406rpm Small electric motor planetary gearbox Micro Planetary Gearbox 24v Dc Gear Motor

FOB Reference Price:Get Latest Price
$5.98 - $16.57 / Pieces | 1000 Piece/Pieces (Min. Order)
Voltage(V):
3V-12v
Output Power:
\
Lead Time:
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETONM
Model Number:
ET-PGM22-B
Usage:
Home Appliance, electroinc lock and safebox, office and home automation
Certification:
CE, ROHS
Type:
Tubular Motor
Torque:
0.1-6kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
1-2000rpm
Continuous Current(A):
≤220
Efficiency:
40%
Weight:
150g
shaft shape:
D-shaft
motor length:
42mm
gearbox length:
14.4-29mm
rotation direction:
CW/CCW running
speed:
adjustable, customized
torque:
adjustable, customized
noise:
low noise
gear:
metal gear
Advantage:
Hig torque small size low noise
Supply Ability
Supply Ability:
6000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packing Details : plastic film bags, foam, carton packing.
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 60000 >60000
Est. Time(days) 60 To be negotiated
Product Description
Product Name

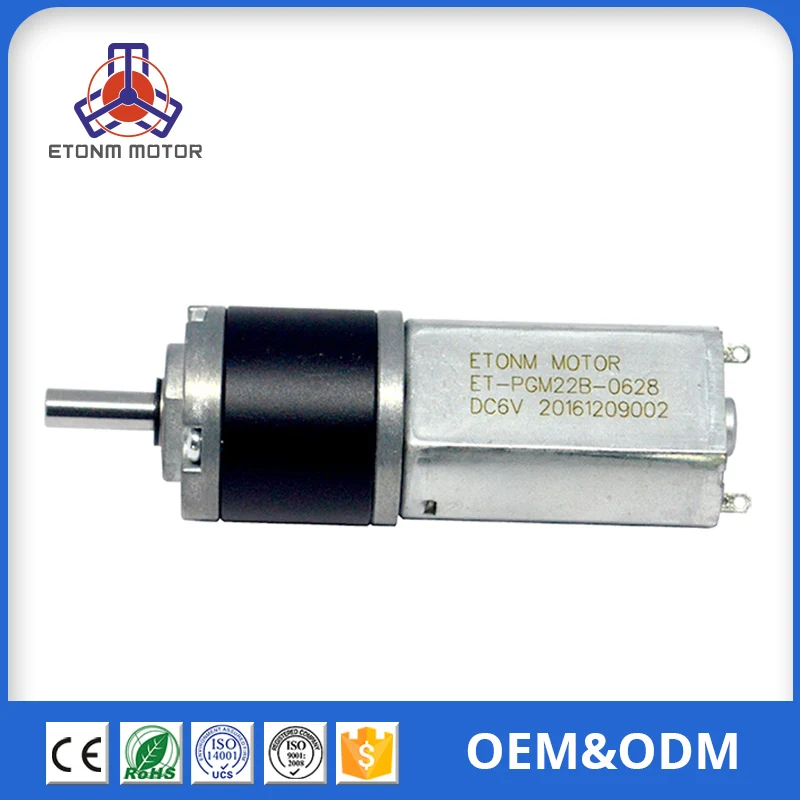

ET-PGM22-B planetary gear motor
Material
stainless steel
Voltage
3-12v
speed
1-2000rpm
Torque
0.1-6kg.cm
Advantage
planetary gearbox, small dimension, low noise
Certification
CE, ROHS
Application
electric lock,safebox, robot

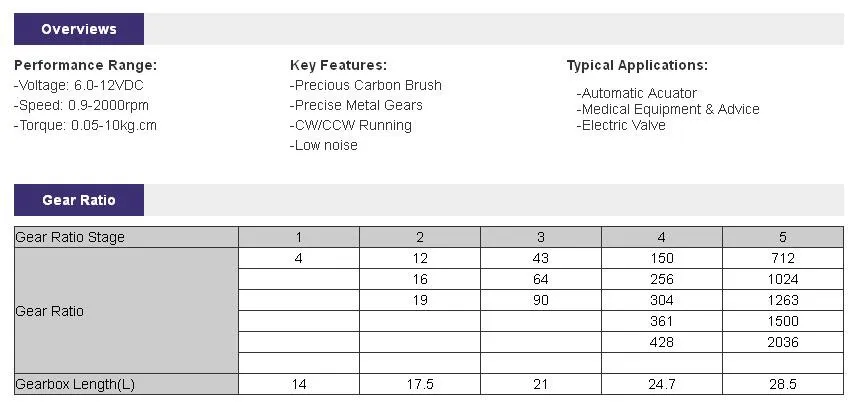

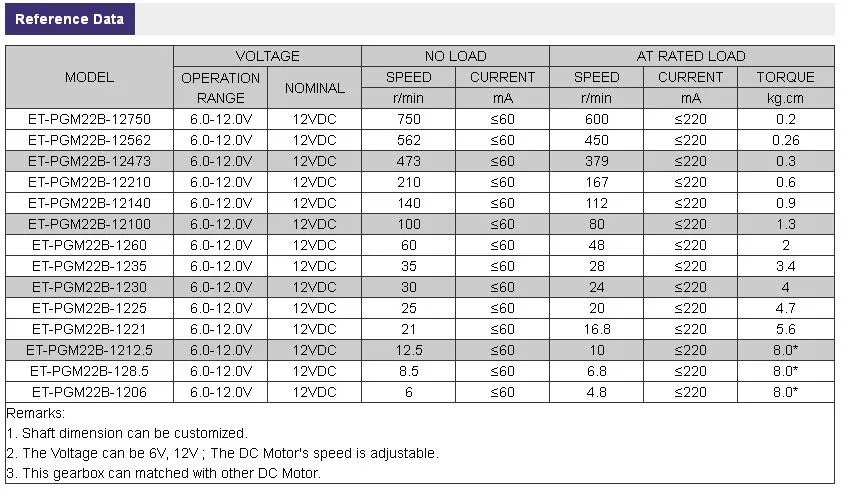

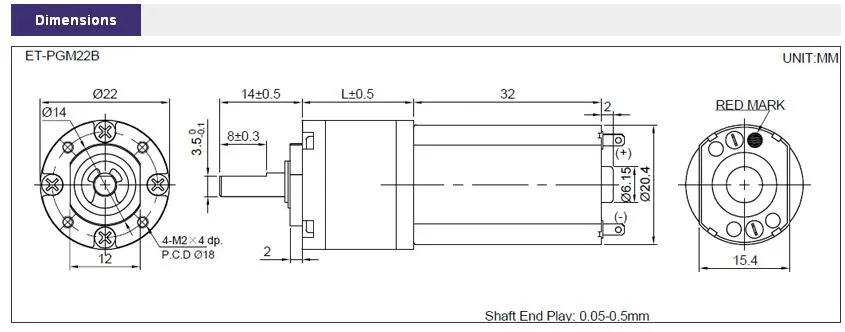

Product Parameters
Products Show
More Products

ET-PGM36

Planetary gearbox motor

ET-SGM51-B

Round gear motor

ET-WGM58A

Worm Gearbox Motor

ET-CGM95C

Flat gearbox motor

ET-SGM12C

Spur gear motor

ET-SGM37A

Spur gear box motor

Certifications
Our Company

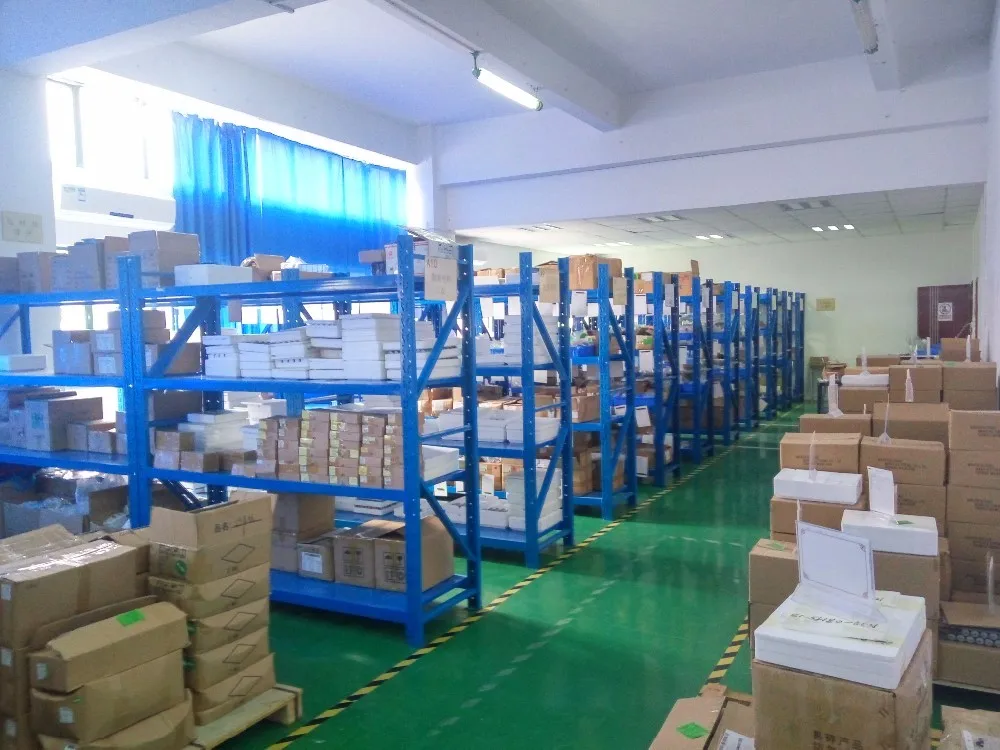

                 Raw materials warehouse

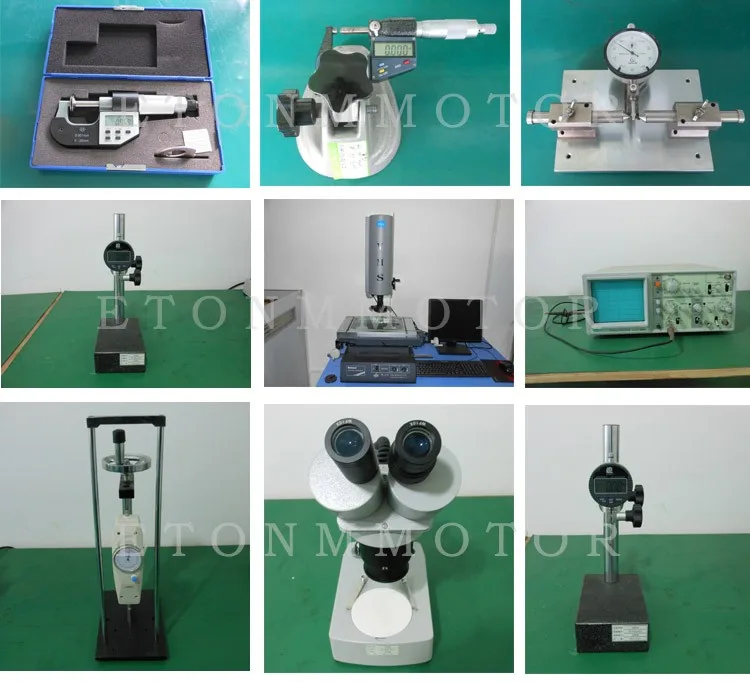

                         Some Test Instruments



                Porduction Workshop

                 Production Process



Quality control
Packing & Shipping

Packing Details  : plastic film bags, foam, carton packing.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging
2. Outer Packing
3. The Mass products loading
FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is 5-20 working days if the goods are in stock. or it is 15-30 working days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for charge.

Q4: Could you customize the motor?

 A: yes, most of motor supplied to current customers are customized, like customized voltage, speed, torque, current and noise; customized dimensions, like shaft, motor body; extral cable&connector, worm, gear support, etc.
